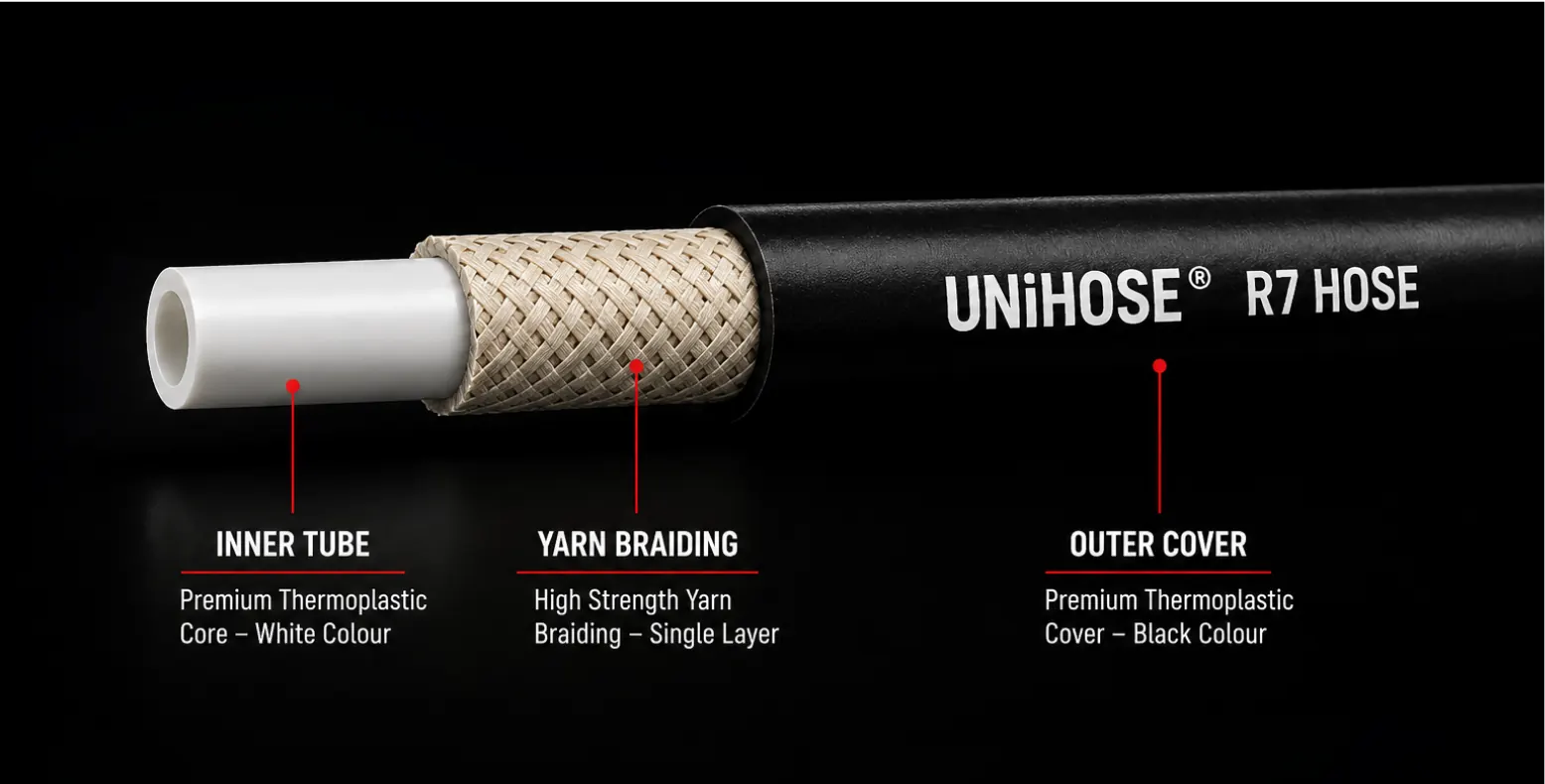

Construction
- Tube: polyester elastomer smooth core
- Reinforcement: single braided synthetic fiber
- Cover: black polyurethane
Thermoplastic Hoses
R7 Thermoplastic Hose
Compact thermoplastic hose for hydraulic, pneumatic and industrial transfer lines requiring clean routing and flexible handling.
Features
- Low elongation
- Increased resistance to abrasion
- Perforated outer cover for gas applications
- Suitable for petroleum, synthetic or water-based fluids in hydraulic systems
- Suitable for use with industrial gases
Applications
- Material handling equipment
- Forklifts
- Marine steering
- Agricultural machinery
- Earth moving equipment
- Articulating and telescopic booms
| Temperature range | -40 C to +100 C (-40 F to +212 F). -40 C to +66 C (-40 F to +150 F) with water-based or fire-resistant fluids. |
|---|---|
| Change in length | +/-2% at working pressure |
| Standard | SAE 100 R7 / SAE J517 / DIN EN ISO 3949 |
| Options | Twin lines and multi-lines with different hose combinations and sizes are available. Special colours available on request. |
| Non-conductive option | Specify product code as BH1011 for electrically non-conductive R7 medium-pressure hydraulic hose with orange outer cover. |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Product code | Size | Dash size | DN | ID mm | ID inch | OD mm | OD inch | WP psi | WP bar | BP psi | BP bar | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1010-02 | 1/8" | 2 | 3 | 3.2 | 0.13 | 8.3 | 0.33 | 3045 | 210 | 12180 | 840 | 22.1 | 0.87 |
| UH1010-03 | 3/16" | 3 | 5 | 4.8 | 0.19 | 10.3 | 0.41 | 3000 | 207 | 12000 | 828 | 24.9 | 0.98 |
| UH1010-04 | 1/4" | 4 | 6 | 6.4 | 0.25 | 12.3 | 0.49 | 2750 | 190 | 11000 | 759 | 30.0 | 1.18 |
| UH1010-05 | 5/16" | 5 | 8 | 7.9 | 0.31 | 14.2 | 0.56 | 2500 | 172 | 10000 | 690 | 41.9 | 1.65 |
| UH1010-06 | 3/8" | 6 | 10 | 9.5 | 0.38 | 15.9 | 0.63 | 2250 | 155 | 9000 | 621 | 50.0 | 1.97 |
| UH1010-08 | 1/2" | 8 | 12 | 12.7 | 0.50 | 19.3 | 0.76 | 2050 | 141 | 8200 | 566 | 74.9 | 2.95 |
| UH1010-10 | 5/8" | 10 | 16 | 15.9 | 0.63 | 23.1 | 0.91 | 1500 | 103 | 6000 | 414 | 104.9 | 4.13 |
| UH1010-12 | 3/4" | 12 | 19 | 19.1 | 0.75 | 26.4 | 1.04 | 1300 | 90 | 5200 | 359 | 140.0 | 5.51 |
| UH1012-02 | 1/8" | 2 | 3 | 3.2 | 0.13 | 8.3 | 0.325 | 3335 | 230 | 13340 | 920 | 22.0 | 0.87 |
| UH1012-03 | 3/16" | 3 | 5 | 4.8 | 0.19 | 10.3 | 0.41 | 3335 | 230 | 13340 | 920 | 25.0 | 0.98 |
| UH1012-04 | 1/4" | 4 | 6 | 6.4 | 0.25 | 12.3 | 0.49 | 3335 | 230 | 13340 | 920 | 30.0 | 1.18 |
| UH1012-05 | 5/16" | 5 | 8 | 7.9 | 0.31 | 14.2 | 0.56 | 3045 | 210 | 12180 | 840 | 45.0 | 1.77 |
| UH1012-06 | 3/8" | 6 | 10 | 9.5 | 0.38 | 16.3 | 0.64 | 3045 | 210 | 12180 | 840 | 55.0 | 2.17 |
| UH1012-08 | 1/2" | 8 | 12 | 12.7 | 0.50 | 22.1 | 0.87 | 3045 | 210 | 12180 | 840 | 80.0 | 3.15 |
