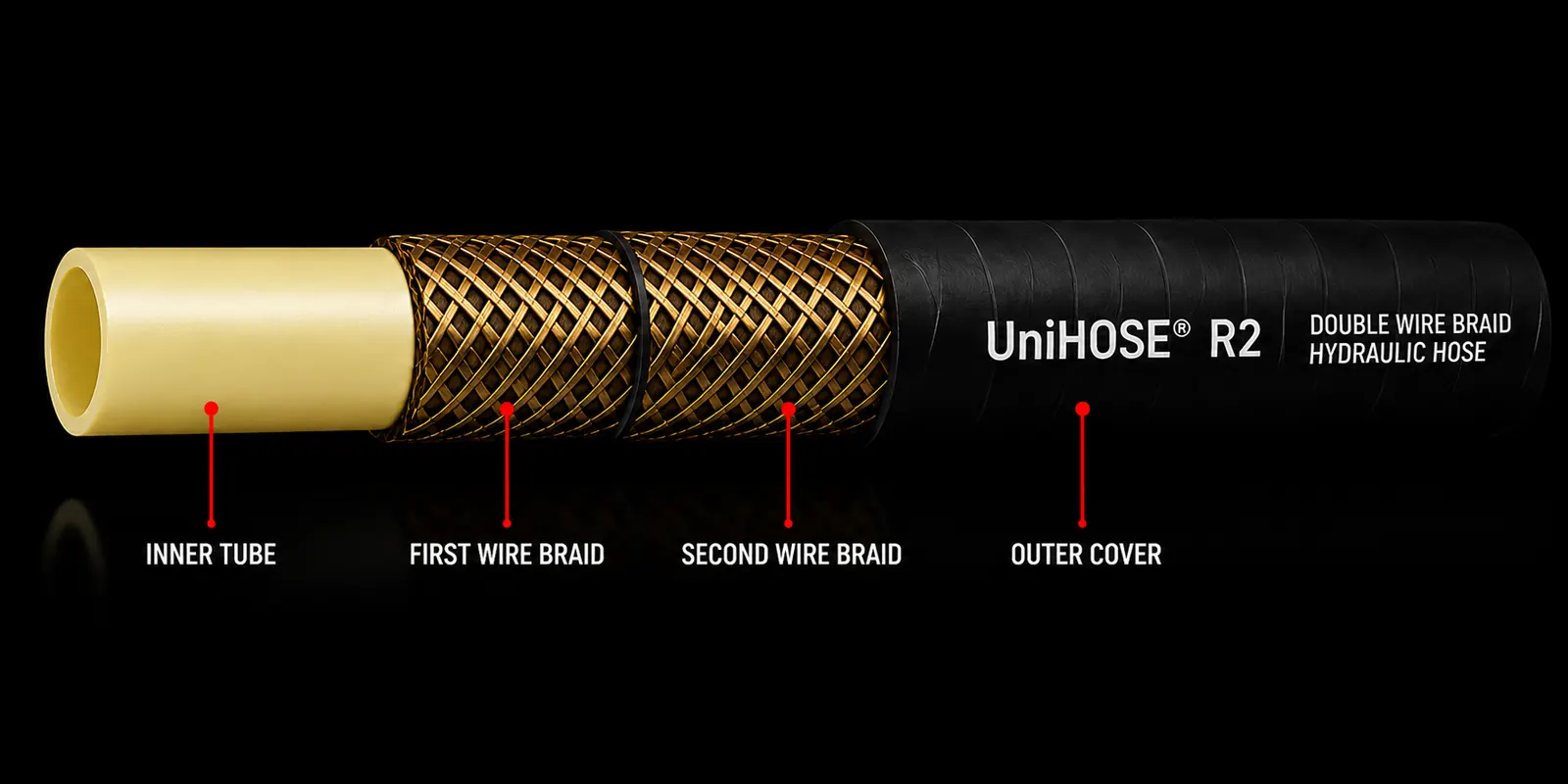

Construction
- Tube: polyester elastomer smooth core
- Reinforcement: double brass-coated high tensile steel wire
- Cover: black polyurethane
Thermoplastic Hoses
R2 Thermoplastic Hose
Double-braid thermoplastic hydraulic hose for higher pressure circuits and reinforced equipment lines.
Features
- Compact and lightweight compared to conventional R2 rubber hose
- Flexible compared to conventional R2 rubber hose
- Low elongation
- Increased resistance to abrasion
- Suitable for petroleum, synthetic or water-based hydraulic fluids
- Can be used with industrial gases
- Pin pricked outer cover available for gas applications
Applications
- High-pressure hydraulic lines with operating pressure 150 to 450 bar
- Rescue tools and equipment
- Mobile hydraulic applications
- Material handling equipment
- Agricultural machinery
- Earth moving equipment
| Temperature range | -40 C to +100 C (-40 F to +212 F). -40 C to +66 C (-40 F to +150 F) with water-based or fire-resistant fluids. |
|---|---|
| Change in length | +/-2% at working pressure |
| Standard | SAE 100 / EN 2 wire braided hose specifications |
| Options | Twin line and multiline hose combinations are available. Special colours available on request. |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Product code | Size | DN | ID mm | ID inch | OD mm | OD inch | WP psi | WP bar | BP psi | BP bar | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1200-03 | 3/16" | 5 | 5 | 0.19 | 12 | 0.47 | 6525 | 450 | 26100 | 1800 | 70 | 2.76 |
| UH1200-04 | 1/4" | 6 | 6 | 0.25 | 14 | 0.54 | 6235 | 430 | 24940 | 1720 | 95 | 3.74 |
| UH1200-05 | 5/16" | 8 | 8 | 0.31 | 15 | 0.60 | 5510 | 380 | 22040 | 1520 | 105 | 4.13 |
| UH1200-06 | 3/8" | 10 | 10 | 0.38 | 18 | 0.69 | 4785 | 330 | 19140 | 1320 | 130 | 5.12 |
| UH1200-08 | 1/2" | 12 | 13 | 0.50 | 21 | 0.83 | 3988 | 275 | 15950 | 1100 | 175 | 6.89 |
| UH1200-10 | 5/8" | 16 | 16 | 0.63 | 25 | 0.98 | 3045 | 210 | 12180 | 840 | 205 | 8.07 |
