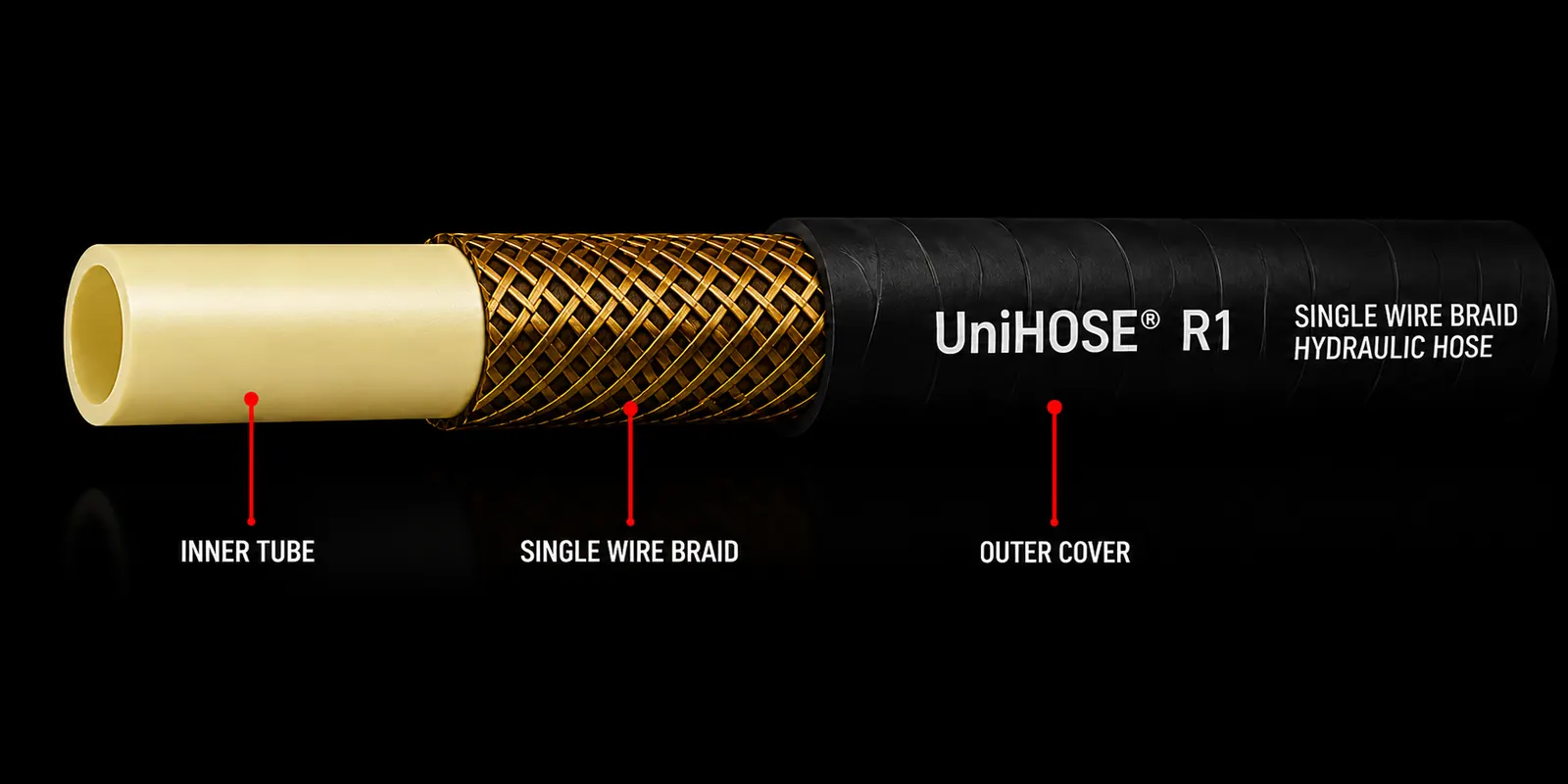

Construction
- Tube: polyester elastomer smooth core
- Reinforcement: single brass-coated high tensile steel wire
- Cover: black polyurethane
Thermoplastic Hoses
R1 Thermoplastic Hose
Single-braid thermoplastic hydraulic hose for medium-pressure hydraulic and industrial fluid transmission.
Features
- Compact and lightweight compared to conventional R1 rubber hose
- Highly flexible with far better bend radius compared to conventional R1 rubber hose
- Higher working pressure rating than conventional R1 hose
- Low elongation
- Increased resistance to abrasion
- Suitable for petroleum, synthetic or water-based hydraulic fluids
- Can be used with industrial gases
- Pin pricked outer cover available for gas applications
Applications
- Medium-pressure hydraulic lines with operating pressure 100 to 350 bar
- Mobile hydraulic applications
- Material handling equipment
- Agricultural machinery
- Earth moving equipment
- Articulating and telescopic booms
| Temperature range | -40 C to +100 C (-40 F to +212 F). -40 C to +66 C (-40 F to +150 F) with water-based or fire-resistant fluids. |
|---|---|
| Change in length | +/-2% at working pressure |
| Standard | SAE 100 / EN 1 wire braided hose specifications |
| Options | Twin line and multiline hose combinations are available. Special colours available on request. |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Product code | Size | DN | ID mm | ID inch | OD mm | OD inch | WP psi | WP bar | BP psi | BP bar | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1100-03 | 3/16" | 5 | 5 | 0.19 | 10 | 0.38 | 5003 | 345 | 20010 | 1380 | 30 | 1.18 |
| UH1100-04 | 1/4" | 6 | 6 | 0.25 | 12 | 0.46 | 4350 | 300 | 17400 | 1200 | 40 | 1.57 |
| UH1100-05 | 5/16" | 8 | 8 | 0.31 | 14 | 0.54 | 3480 | 240 | 13920 | 960 | 50 | 1.97 |
| UH1100-06 | 3/8" | 10 | 10 | 0.38 | 15 | 0.60 | 3263 | 225 | 13050 | 900 | 56 | 2.20 |
| UH1100-08 | 1/2" | 12 | 13 | 0.50 | 18 | 0.73 | 2755 | 190 | 11020 | 760 | 75 | 2.95 |
| UH1100-10 | 5/8" | 16 | 16 | 0.63 | 22 | 0.88 | 2030 | 140 | 8120 | 560 | 110 | 4.33 |
