PTFE Hose Systems

PTFE Plain Hose

High-purity PTFE hose for high-temperature, low-friction and chemically aggressive media transfer.

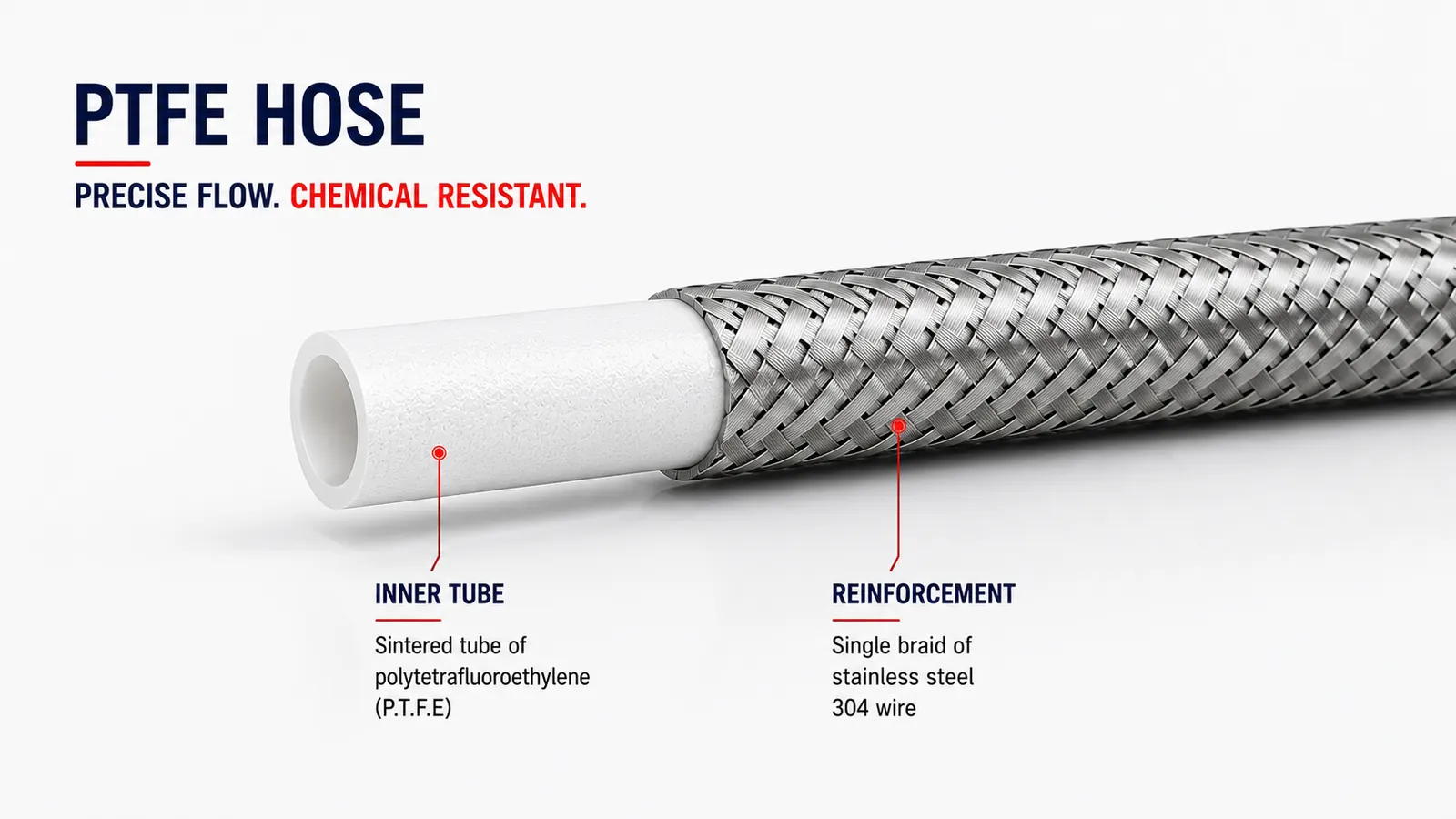

PTFE Plain Hose construction

Construction and features

Excellent resistance to chemicals, acids, alkalis, solvents, and fuels
Continuous performance from -54 C to +260 C
Low coefficient of friction for smooth flow
Non-stick, non-contaminating, and low permeation
Weather, ozone, and ageing resistant
FDA compliant options and anti-static liner options available

Applications

Chemical processing
Paint spraying
Industrial gases
Pharmaceutical transfer
Food and beverage
Automotive brake, clutch, fuel, and cooling systems
Refrigeration and HVAC
Aerospace and defence
Electronics and semiconductor
Marine and offshore

Applicable standard	SAE J517 - 100R14
Temperature range	-54 C to +260 C
Reinforcement	Single braid SS304
Inner tube	Virgin PTFE, sintered
Options	Anti-static liner and color options on request
Technical sheet	Mandatory for all sizes

PTFE plain hose technical data

Working Pressure (WP) at 23 C (73 F). Safety factor 4:1. Other sizes available on request.

Type	Item code	Dash size	WT	ID inch	ID mm	OD inch	OD mm	WP psi	WP bar	BP psi	BP bar	Bend radius inch	Bend radius mm
PTFE Plain	UH786-4	-4	0.75	3/16	4.83	0.300	7.6	3000	210	12000	840	2.0	50
PTFE Plain	UH786-5	-5	0.65	1/4	6.48	0.380	9.7	3000	210	12000	840	3.0	75
PTFE Plain	UH786-6	-6	0.75	5/16	8.00	0.440	11.2	2500	175	10000	700	4.0	100
PTFE Plain	UH786-7	-7	0.75	3/8	9.65	0.495	12.6	2400	165	9600	660	5.0	125
PTFE Plain	UH786-8	-8	0.75	13/32	10.41	0.543	13.8	2000	140	8000	560	5.3	135
PTFE Plain	UH786-10	-10	0.75	1/2	12.83	0.650	16.5	1750	120	7000	480	6.5	165
PTFE Plain	UH786-12	-12	0.90	5/8	16.00	0.765	19.43	1270	88	5080	352	8.0	200
PTFE Plain	UH786-14	-14	0.90	3/4	19.18	0.900	22.9	1100	75	4400	300	9.1	230
PTFE Plain	UH786-18	-18	1.05	1	25.53	1.148	29.15	900	62	3600	248	11.8	300

Request quote Request technical sheet
