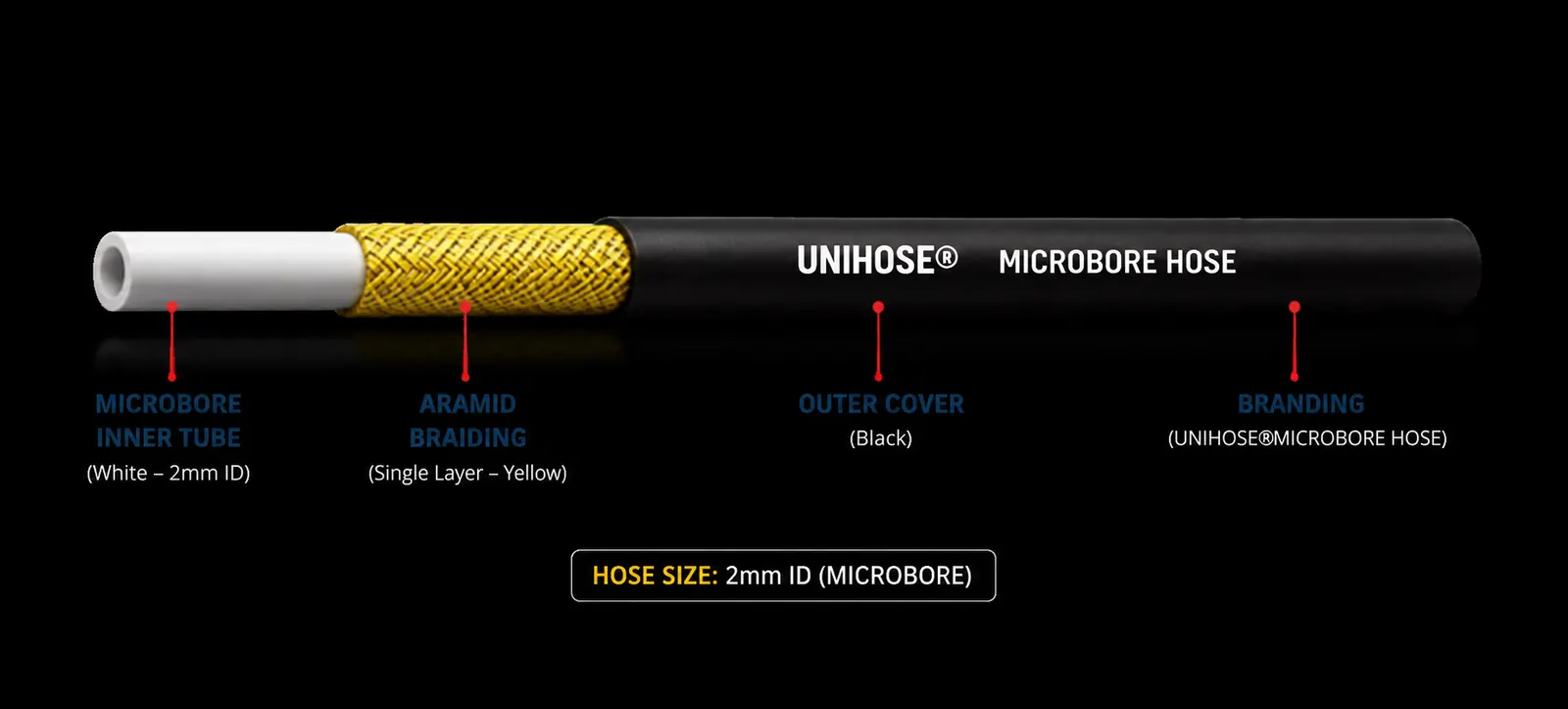

Construction
- Tube: polyester elastomer smooth core
- Reinforcement: single braided high tensile aramid fiber or single braided synthetic fiber
- Cover: black polyurethane
Thermoplastic Hoses
Microbore Hose
Compact thermoplastic microbore hose for hydraulic diagnostics, pressure testing and small bore fluid transfer.
Features
- Increased resistance to abrasion for use with petroleum, synthetic or water-based fluids in hydraulic pressure test equipment and test points
- Pin pricked cover and special colours available on request
Applications
- Mini hydraulic lines with pressure range 250 bar to 630 bar
- Pressure test equipment and test points
- Automotive roofs
- Boot opening systems
- Truck cab lifting systems
| Inner diameter | As low as 2 mm ID |
|---|---|
| Working pressure | 250 bar to 630 bar |
| Temperature range | -40 C to +82 C |
| Change in length at working pressure | +/-2% |
| Standard | Exceeds SAE / EN 1 fiber braid hose specifications |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Part No | Hose Size | DN | ID mm | ID inch | OD mm | OD inch | WP bar | WP psi | BP bar | BP psi | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1060-2 | 5/64" | 2 | 2.0 | 0.08 | 5.1 | 0.20 | 250 | 3625 | 1000 | 14500 | 20.0 | 0.79 |
| UH1060-3 | 1/8" | 3 | 3.2 | 0.13 | 6.5 | 0.26 | 200 | 2900 | 800 | 11600 | 20.0 | 0.79 |
| UH1060-4 | 5/32" | 4 | 4.0 | 0.16 | 8.3 | 0.33 | 200 | 2900 | 800 | 11600 | 30.0 | 1.18 |
| UH1062-2 | 5/64" | 2 | 2.0 | 0.08 | 5.1 | 0.200 | 630 | 9135 | 1890 | 27405 | 20.0 | 0.79 |
| UH1062-3 | 1/8" | 3 | 3.2 | 0.13 | 6.0 | 0.237 | 630 | 9135 | 1890 | 27405 | 20.0 | 0.79 |
| UH1062-4 | 5/32" | 4 | 4.0 | 0.16 | 8.0 | 0.315 | 630 | 9135 | 1890 | 27405 | 30.0 | 1.18 |
