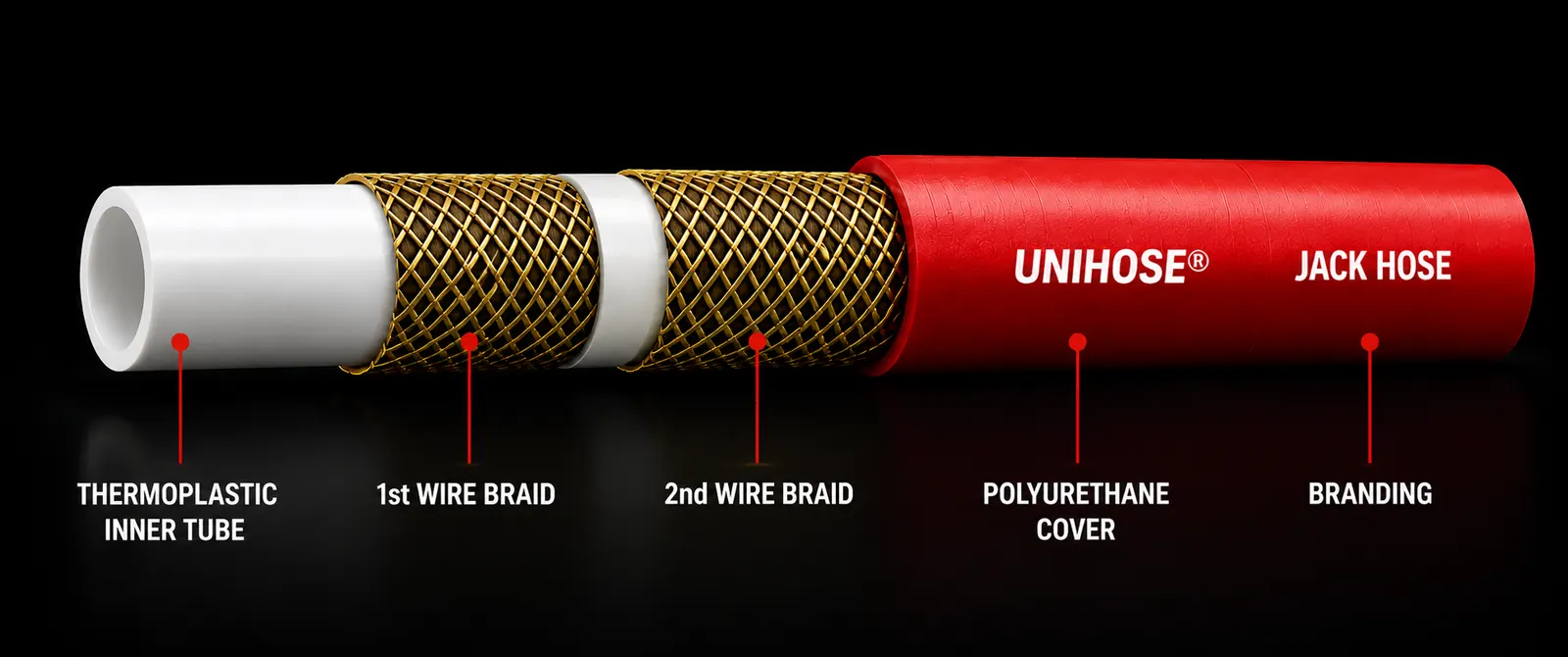

Construction
- Thermoplastic inner tube compatible with hydraulic fluids
- High-tensile steel wire braid reinforced with aramid yarn
- Abrasion, ozone, and hydrolysis-resistant thermoplastic cover
Thermoplastic Hoses
Hydraulic Jack Hose
Thermoplastic jack hose for ultra-high-pressure lifting and jacking applications where safety, flexibility and field reliability are critical.
Features
- Compact, lightweight, flexible, and easy to install
- Continuous branding and batch number for traceability
Applications
- Hydraulic jacks and cylinders
- Construction equipment
- Tank and strand jacking systems
- Industrial hydraulic systems
- Material handling equipment
| Working pressure | Up to 700 bar / 10,000 psi |
|---|---|
| Burst pressure | Up to 2800 bar / 40,600 psi |
| Temperature range | -40 C to +100 C |
| Media | Mineral-based hydraulic oils |
| Standards | SAE 100 / EN 2 wire braided hose specifications |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Part No | Hose Size | DN | ID mm | ID inch | OD mm | OD inch | WP bar | WP psi | BP bar | BP psi | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1600-04 | 1/4" | 6 | 6.4 | 0.25 | 14 | 0.55 | 700 | 10150 | 1750 | 25375 | 95 | 3.74 |
| UH1600-06 | 3/8" | 10 | 9.6 | 0.38 | 18 | 0.71 | 700 | 10150 | 1600 | 23200 | 130 | 5.12 |
| UH2000-04 | 1/4" | 6 | 6.4 | 0.25 | 13.7 | 0.54 | 700 | 10150 | 1750 | 25375 | 85 | 3.35 |
| UH2000-06 | 3/8" | 10 | 9.6 | 0.38 | 17.5 | 0.69 | 700 | 10150 | 1600 | 23200 | 110 | 4.33 |
| UH2100-04 | 1/4" | 6 | 9.4 | 0.25 | 13.7 | 0.54 | 700 | 10150 | 2100 | 30450 | 90 | 3.54 |
| UH2100-06 | 3/8" | 10 | 9.6 | 0.38 | 17.5 | 0.69 | 700 | 10150 | 2100 | 30450 | 115 | 4.53 |
| UH2800-04 | 1/4" | 6 | 6.4 | 0.25 | 14.5 | 0.57 | 700 | 10150 | 2800 | 40600 | 90 | 3.54 |
| UH2800-06 | 3/8" | 10 | 9.6 | 0.38 | 19.5 | 0.77 | 700 | 10150 | 2800 | 40600 | 120 | 4.72 |
