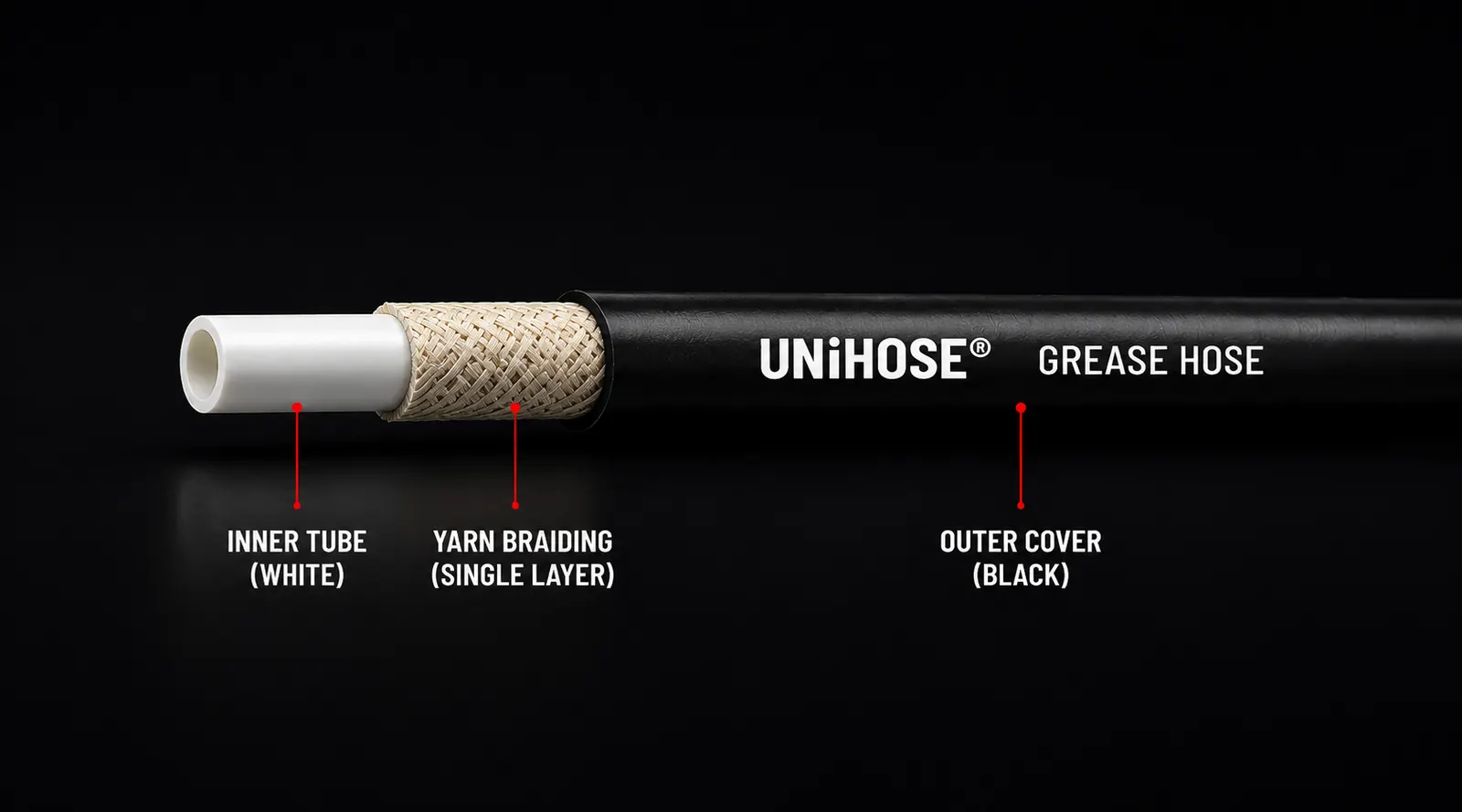

Construction
- Tube: polyester elastomer smooth core
- Reinforcement: single or double braided synthetic fiber / high tensile aramid fiber
- Cover: black polyurethane
Thermoplastic Hoses
Grease Hose
Specially designed thermoplastic grease hose for diverse greasing and lubrication applications across industrial, handheld and automotive centralized systems.
Features
- Specifically designed for frictionless flow of lubricants and grease
- Special colours, working pressures and dimensions available on request
Applications
- High-pressure grease applications
- Hand-operated grease guns
- Industrial lubrication applications
- Handheld grease distribution equipment
- Automatic centralized grease distribution systems
- Automotive grease distribution equipment
| Medium | Grease and lubricants |
|---|---|
| Temperature range | -40 C to +100 C |
| Water-based or fire-resistant fluids | -40 C to +66 C |
| Change in length at working pressure | +/-2% |
| Standard | Exceeds SAE / EN 2 fiber braid hose specifications |
Technical Specifications
WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.
| Part No | Hose Size | DN | ID mm | ID inch | OD mm | OD inch | WP bar | WP psi | BP bar | BP psi | Bend radius mm | Bend radius inch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UH1070-2 | 1/8" | 3 | 3.2 | 0.13 | 6.9 | 0.27 | 300 | 4350 | 800 | 11600 | 20.0 | 0.79 |
| UH1070-3 | 9/64" | 3 | 3.6 | 0.14 | 8.0 | 0.32 | 300 | 4350 | 800 | 11600 | 20.0 | 0.79 |
| UH1070-4 | 5/32" | 4 | 4.0 | 0.16 | 8.0 | 0.32 | 300 | 4350 | 800 | 11600 | 30.0 | 1.18 |
| UH1072-2 | 1/8" | 3 | 3.2 | 0.13 | 6.9 | 0.270 | 400 | 5800 | 1000 | 14500 | 20.0 | 0.79 |
| UH1072-3 | 9/64" | 3 | 3.6 | 0.14 | 8.5 | 0.336 | 400 | 5800 | 1000 | 14500 | 35.0 | 1.38 |
| UH1072-4 | 5/32" | 4 | 4.0 | 0.16 | 8.5 | 0.336 | 400 | 5800 | 1000 | 14500 | 40.0 | 1.57 |
| UH1072-4.2 | 5/32" | 4 | 4.0 | 0.16 | 9.0 | 0.354 | 400 | 5800 | 1000 | 14500 | 45.0 | 1.77 |
