Thermoplastic Hoses

Airless Paint Spray Hose

Lightweight, flexible, chemically resistant hose for precise coating applications requiring consistent pressure delivery.

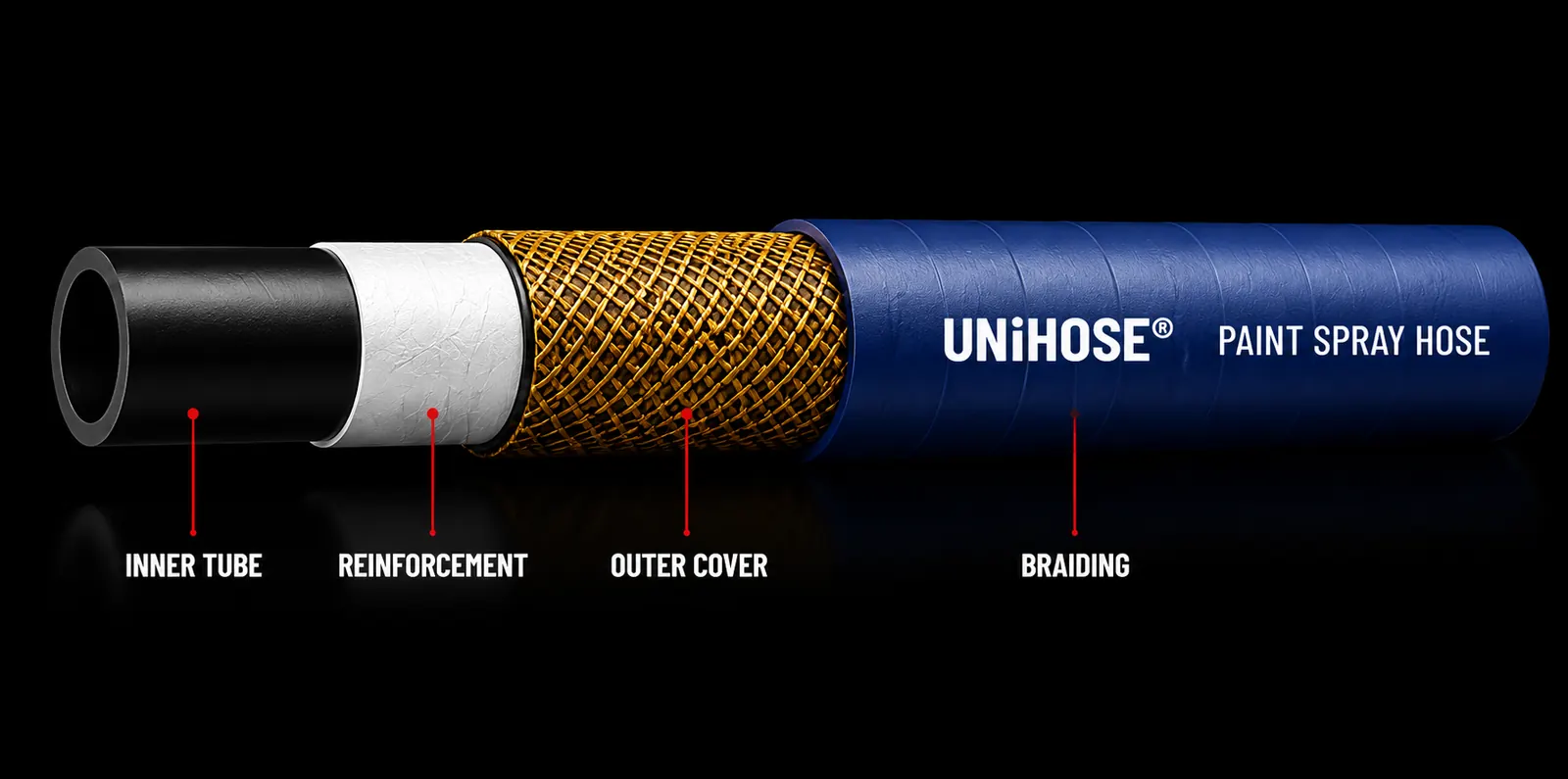

Construction

Working pressure	Up to 700 bar / 10,000 psi
Burst pressure	Up to 2800 bar / 40,600 psi
Temperature range	-40 C to +100 C
Media	Solvents and paints
Standards	Designed around SAE100, EN 854 Type 1TE / 2TE and EN 857 Type 1SC / 2SC requirements

WP (Working Pressure) at 23 C (73 F). BP (Burst Pressure) is minimum. Values may vary with temperature and application.

Part No	Hose Size	DN	ID mm	ID inch	OD mm	OD inch	WP bar	WP psi	BP bar	BP psi	Bend radius mm	Bend radius inch
UH5000-04	1/4"	6	6.4	0.25	13.2	0.52	228	3300	912	13200	100	3.94
UH5000-06	3/8"	10	9.6	0.38	17.5	0.69	228	3300	912	13200	125	4.92
UH5000-08	1/2"	12	12.6	0.50	22.6	0.89	228	3300	912	13200	175	6.89
UH1300-04	1/4"	6	6.4	0.25	11.7	0.46	325	4713	1300	18850	40	1.57
UH1300-06	3/8"	10	9.6	0.38	15.2	0.60	250	3600	1000	14400	56	2.20
UH1300-08	1/2"	12	12.6	0.50	18.4	0.72	190	2750	760	11000	75	2.95
UH1400-04	1/4"	6	6.4	0.25	13.7	0.54	450	6500	1800	26000	95	3.74
UH1400-06	3/8"	10	9.6	0.38	17.5	0.69	380	5500	1520	22000	130	5.12
UH1400-08	1/2"	12	12.6	0.50	21.1	0.83	300	4350	1200	17400	175	6.89
UH2300-04	1/4"	6	6.4	0.25	13.7	0.54	700	10150	2800	40600	70	2.76
UH2300-06	3/8"	10	9.6	0.38	18.8	0.74	700	10150	2800	40600	100	3.94
UH2300-08	1/2"	12	12.6	0.50	22.4	0.88	525	10150	2100	30450	170	6.69
